160–170°C Start: Swatch Grid Locks DTF Press Settings for Shops

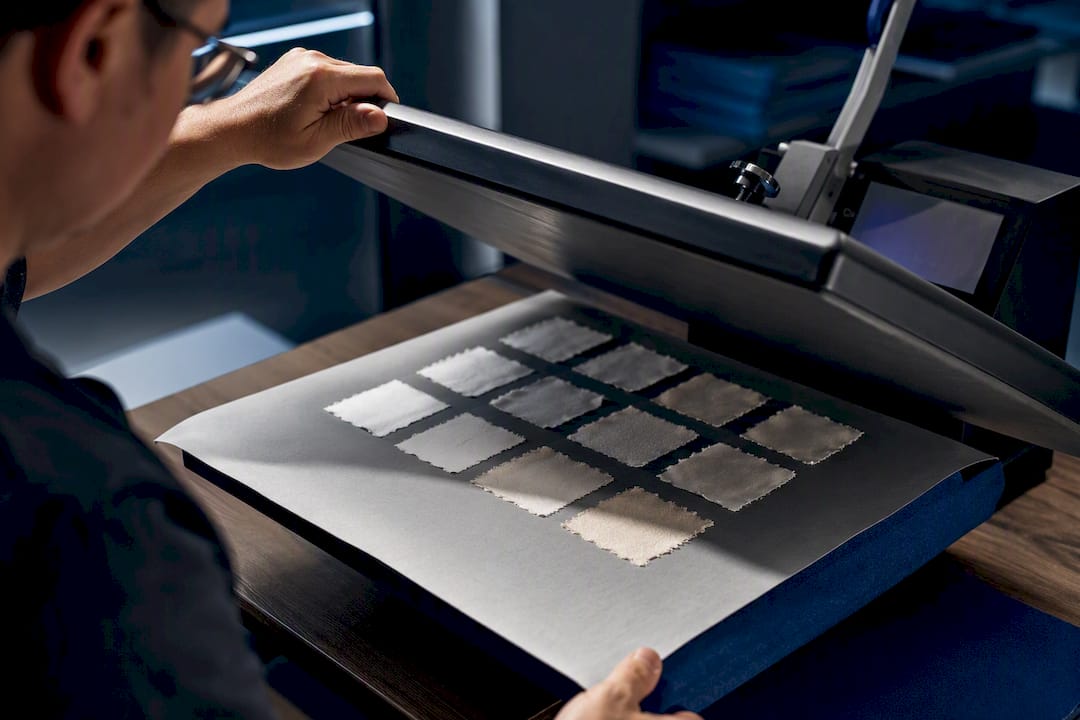

DTF swatches being tested under heat press

Start at Use a temperature starting range around 160 to 170°C, press for about 10 to 15 seconds at medium to medium-firm pressure, and peel warm. That range works as a first pass on most cotton and cotton-blend shirts. Test it on a scrap swatch before you run a real order, then adjust the temperature down and the time shorter if you’re working with polyester, nylon, or anything with a moisture-wicking coating.

TL;DR:

  • Polyester transfers require significantly lower temperatures and shorter press times than cotton to prevent dye migration and discoloration.
  • Proper temperature measurement should be done with an infrared thermometer directly on the platen to account for display discrepancies.
  • Adjusting pressure and dwell time is more effective than increasing temperature to fix common transfer failures like edges lifting or poor adhesion.
  • Testing on scrap samples with only one variable changed at a time is essential for finding optimal settings and ensuring consistent results.
  • Using ready-made transfers can eliminate trial-and-error, reducing dye migration risks and saving time and film costs.
Transferkingz
Make Your Next Press Run Smoother
Order custom DTF transfers with straightforward application guidance for apparel projects, from small batches to larger production runs.
Explore DTF transfers

Table of Contents

Quick DTF Press Settings by Fabric Type

These numbers are starting points, not guarantees. Every press runs a little differently, every film and powder combination behaves a little differently, and the only way to know your exact setting is to test on scrap first. Industry guides converge on medium-firm pressure and a warm peel as the safest general default, so that’s the baseline below.

Polyester deserves its own warning label. Push the temperature too high or hold too long and you risk dye migration, where dye from the shirt bleeds up into the transfer and discolors light-colored ink. Lower temperature and shorter dwell time reduce that risk considerably, which is why the polyester row above sits well below the cotton row.

Tuning Settings for Cotton, Poly, Blends, Nylon, Denim, and Performance Fabrics

Cotton is the forgiving fabric. It handles higher heat without scorching easily and tolerates a slightly longer press without much downside, which is why most DTF on cotton guidance starts near the top of the general range and rarely needs much adjustment.

Polyester is heat sensitive, and excessive heat or time can cause dye migration. Therefore, lower temperatures and shorter press times than those used for cotton are recommended. Working specifically with DTF transfers for polyester means treating every dark or saturated polyester shirt as a higher-risk job until you’ve proven your settings on that exact fabric.

Blends fall between cotton and polyester; a 50/50 blend often behaves closer to polyester, so start at lower cotton temperature ranges and test accordingly.

Nylon is heat-sensitive and can be damaged by high temperature; start at lower temperatures and gradually increase while testing carefully.

Denim and heavy textiles require firmer pressure and may benefit from a heat press pillow to ensure even contact over seams and pockets.

Performance fabrics often have coatings that reduce adhesion; use lower temperature and shorter pressing times and test adhesion first.

  • Cotton: forgiving, tolerates higher heat and longer dwell
  • Polyester: needs lower heat and shorter time to prevent dye migration
  • Blends: lean toward the lower end of the cotton range
  • Nylon: test on hidden fabric first, raise heat gradually
  • Denim: increase pressure, use a pillow for uneven surfaces
  • Performance fabrics: lower heat, shorter time, expect adhesion limits

Pro Tip: If you’re not sure whether a fabric leans more cotton or more polyester, press two samples, one at each range’s setting, and launder both before deciding which one becomes your production standard.

How Pressure and Dwell Time Work Together

Pressure has three practical levels. Light pressure means the press closes with some resistance but you’re not putting real weight into it. Medium means you feel the platen compress the fabric and the transfer firmly. Firm means you’re leaning into the handle or the pneumatic press is set near its top range, and the fabric visibly flattens.

When a transfer fails, most people reach for the temperature knob first. That’s often the wrong move. If the edges lift, try more pressure or a couple more seconds before raising heat, since overheating causes its own set of problems. Press type matters too. Clamshell presses apply less even pressure at the edges than swing-away or draw presses, which distribute weight more evenly across the platen.

  1. Start with the fabric’s suggested range from the table above.
  2. Press one swatch, peel warm, and check adhesion after it cools.
  3. If the transfer lifts, increase pressure, then time, before increasing temperature.
  4. If scorching or poor release occurs, reduce temperature moderately and retest.
  5. Document the exact combination once it works.

Peel Timing and Finishing Touches

Warm peel is the most common default because it balances a strong bond with a smooth finish. Hot peel, pulled right off the press, tends to leave a slightly matte finish and can risk lifting if the adhesive hasn’t fully set. Cold peel produces the glossiest result but some films resist removal once fully cooled.

  • Hot peel: matte finish, higher risk of lifting if rushed
  • Warm peel: balanced adhesion and finish, the safest default
  • Cold peel: glossiest look, but some films are harder to remove

A parchment or silicone cover sheet protects delicate fabrics during a finish press, though Epson’s technical guidance notes it can also mute detail on some films, so test both ways. A quick finish press, 5 seconds at the same temperature with light pressure, helps set stubborn edges after peeling.

Why Your Press Display Might Be Lying to You

Most heat press displays read the heating element, not the actual platen surface, and the gap between the two can run 10 to 20 degrees. That gap explains a lot of “the settings I found online don’t work” complaints. An infrared thermometer solves this in seconds: measuring the real surface temperature at several points on the platen tells you what the transfer is actually experiencing.

  • Check at least four points on the platen, not just the center.
  • If readings vary by more than 10°F, expect uneven results and compensate with a pillow or slightly longer dwell on cooler spots.
  • Adjust your set temperature until the measured surface matches your target, not the display number.
  • Retest after any element repair or extended use, since heating elements drift over time.

Pro Tip: Keep a simple log of your measured platen temperature next to whatever setting worked for each fabric. Six months from now, you won’t remember why 315°F worked on that one polo, but the log will.

Fixing Peeling, Cracking, Dye Migration, and Scorching

  1. Peeling or lifting edges. Check powder cure first, since undercured adhesive is the most common cause. Increase pressure, then add 2 to 3 seconds before raising temperature.
  2. Cracking after a few washes. This usually signals overcure, not undercure. Reduce pressure or dwell time rather than pressing harder or longer next time.
  3. Dye migration on polyester. Drop temperature by 10°F and shorten time by 2 to 3 seconds. A barrier spray helps on dark, heat-sensitive polyester, and avoiding dark polyester for high-heat jobs altogether is sometimes the simpler fix. Full troubleshooting steps for cracking cover related failure patterns worth checking against.
  4. Scorching or shiny gloss marks. Lower the temperature and add a cover sheet for the next press. If the mark is already there, it’s not coming out.
  5. Before rerunning any failed job: confirm your platen temperature with an IR thermometer, check that pressure feels consistent across the platen, and change only one variable at a time.

More detailed troubleshooting tips are worth bookmarking if failures keep repeating on the same fabric type.

Building a Repeatable Test Protocol

A swatch grid beats guesswork every time. Cut several scrap squares, label each one with its exact settings, and change only one variable per row: temperature across one axis, time across another. Press, peel, and let each swatch cool fully before judging adhesion, then wash-test the ones that pass.

  • Label every swatch immediately, before you forget which is which.
  • Change one variable at a time so you know what actually caused the result.
  • Wait until swatches cool before judging adhesion, since warm film can look bonded when it isn’t.
  • Wash-test survivors before calling a setting “final.”
  • Follow the 7-step application checklist for the pressing steps themselves once your settings are locked in.

Speed, Durability, and Knowing Which One Matters Right Now

Production work forces trade-offs the tutorials rarely mention. A retail customer’s shirt needs to survive fifty washes, so durability wins over speed every time, even if that means an extra pressure pass. A same-day proof for a client approval doesn’t need that margin. Document your settings by garment type once, in writing, because relying on memory across a busy production week is how good shops start shipping inconsistent shirts. Some fabrics, particularly heavily coated performance wear, sometimes aren’t worth fighting. Screen printing or embroidery may serve the customer better than forcing a DTF transfer onto a surface that resists adhesion no matter what you do to the press.

— Anthony
